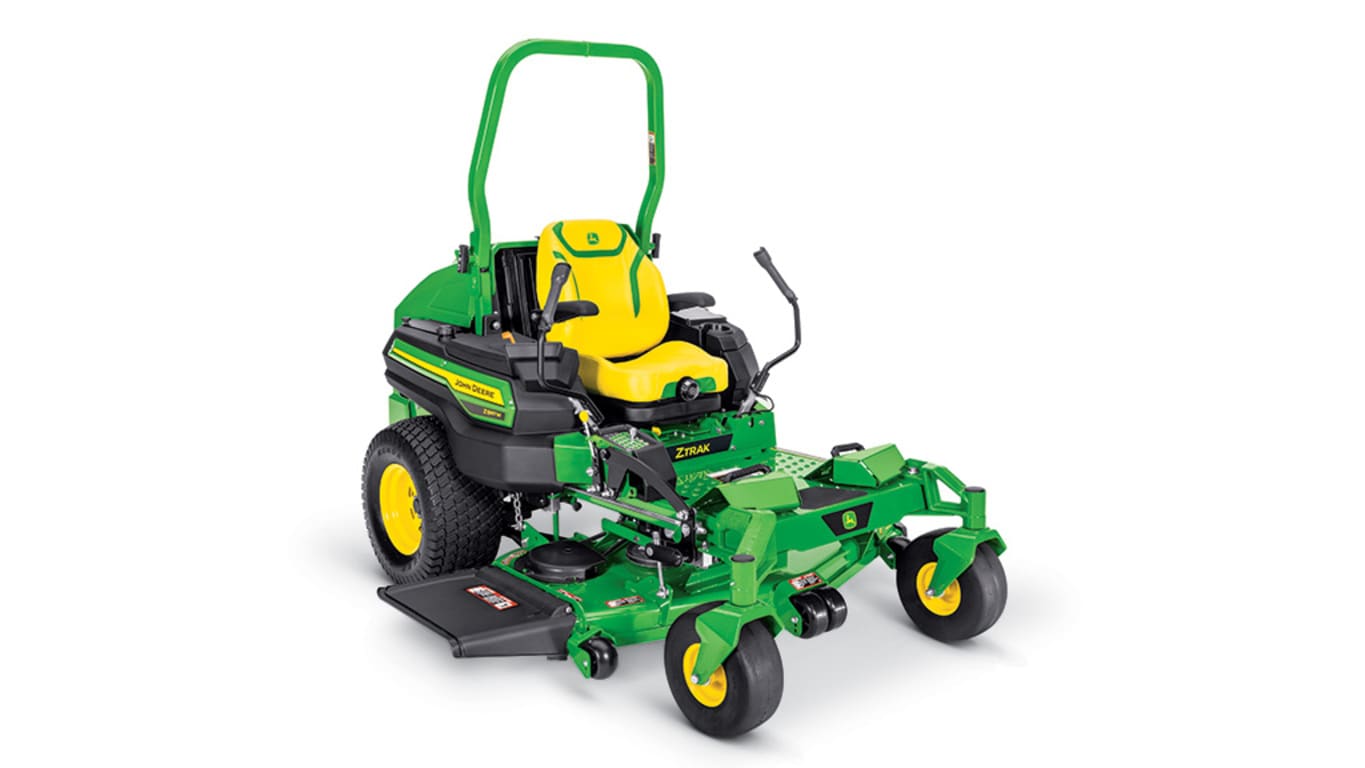

Z997M DIESEL MOWER

The Z997M and Z997R Diesel ZTrak™ Mowers are powered by a 3-cylinder, liquid-cooled diesel engine with gross SAE J1995 37.4 hp (27.5 kW) that meets U.S. Environmental Protection Agency (EPA) Final Tier 4 emission standards. The engine achieves Final Tier 4 compliance by using a diesel oxidation catalyst with diesel particulate filter (DOC/DPF) system.

The three-cylinder diesel engine features low noise levels, superior fuel economy, and a high torque reserve that provides plenty of power and performance.

Key features of the engine include:

• Economical, cast-in-block cylinder design gives good cooling and long life.
• Liquid-cooled design provides more consistent operating temperatures than air-cooled.
• Direct fuel injection is provided.
  • Injects fuel directly on top of pistons for more efficient combustion
  • Develops more horsepower per gallon of fuel
  • Improves starting
• Aluminum-alloy pistons with built-in steel struts are lightweight to reduce connection rod bearing loads and provide good heat-transfer characteristics.
  • Design permits tighter tolerances and neutralizes expansion of the piston, thereby reducing blow-by fuel and noise from piston slap
  • Higher top rings on the piston and a thinner head gasket greatly reduce the volume of unburned waste and increase combustion efficiency
• Timing gears and injector drive gears utilize a helical profile to help lower engine noise.
  • Gear teeth have a ''roll-off'' profile, giving almost no clash, noise, or backlash.
• Fuel filter with replaceable element is provided.
• Quick starts in temperatures down to 0°F (-18°C).
• Auto-bleed fuel system gives extra convenience.
  • No need to prime the system if the unit runs out of fuel; the system will self-prime the injection pump, lines, and injectors, providing fast fuel recovery
• Key start and shutoff
• See-through coolant recovery tank permits operator to check coolant level without removing radiator cap.
• Sealed radiator compartment keeps trash and debris on the outside of hood.
• Dual-element, dry-type air cleaner with safety element and air-service indicator is provided.
  • Dual-element design for added engine protection
  • Easy to service
  • Completely sealed for effective cleaning and 90 to 95 percent of dirt ejected before it reaches the paper element
  • Secondary safety element for additional filtering
  • Air-restriction indicator to let operator know when the filter needs servicing
• Full-pressure lubrication with full-flow filter lengthens engine life.
  • Engine wear reduced by ensuring proper lubrication, even when operating on hillsides or uneven terrain
  • Oil filter helps keep oil clean for increased engine life
• Automotive-type alternator (150 amp) provides plenty of charge to the battery.
• Rear-mounted, covered radiator and fan keeps noise away from the operator and is easy to service.
• Isolated engine mounting reduces engine vibration at operator's station for more comfortable operation.

Air cleaner filters out dust to extend engine life

The Z997M and Z997R Diesel ZTrak Mowers are equipped with a dual-element, canister-style air filter that is easily accessible without tools from the rear of the machine.

• Filtration system pulls clean air from above the engine, and filters out remaining dust that can damage an engine over time.
• Filters are easy to change when required.
• Pre-cleaner provides extra protection against contamination in dusty and dirty applications.

12-U.S. gal. (45.4-L) capacity fuel tank allows the operator to mow for a full day without refueling

The Z997M and Z997R Diesel ZTrak Mowers are equipped with a single fuel tank, providing the following:

• 12-U.S. gal. (45.4-L) capacity allows the operator to mow for a full day without refueling.
• A large filler neck makes for easier refueling.
• Top fuel draw provides added safety by reducing the chance fuel will leak out.

There are two side-discharge mower-deck options available for the Z997M and Z997R Diesel ZTrak™ Mowers:

• The 60-in. (152-cm) 7Iron PRO side-discharge deck is suited to a variety of mowing jobs, including trimming and grooming.
• The 72-in. (183-cm) 7Iron PRO side-discharge deck is suited to a variety of mowing jobs, including trimming and grooming on larger properties.

Extra reliability and long life with cast-iron blade spindle housings

On every commercial mower deck there are three 1-in. (25-mm) spindles that are cold-forged and heat-treated for strength. Spindles are supported by precision ball bearings that provide great performance and reliability.

• Superior impact strength provided by ductile cast-iron material.
• Gusseted design puts reinforcement where it is needed.
• Strength of cast iron protects against damage from blade impacts.
• Easy access grease fittings are mounted at the top of the spindle shafts for convenience.
• Grease pressure-relief valve minimizes seal damage from overfilling with grease and keeps debris from entering housing.
• Chance of deck shell damage is minimized with the 8-in. (20.3-cm) diameter housing and six mounting bolts that distribute loads and impacts.
• Ability to be reliably rebuilt is provided by use of cast iron.

Shaft-drive mower deck is durable and reliable

Mower decks are shaft driven. Benefits of using this type of system include:

• Live independent power take-off (PTO) powers the mower deck.
• PTO can be engaged or disengaged on the go for greater productivity.
• Hydraulic PTO clutch has delay relief valve for soft engagement.
• Wet clutch is designed for long life.
• PTO is easily accessible.
• 250-lb-ft (339-Nm), heavy-duty hydraulic clutch provides long life.
• Splined PTO shaft transfers power to the cast-iron gearbox.

60-in. (152-cm) 7Iron PRO mower deck

Features include:

• Higher blade tip speed - approximately 18,000 fpm (5486 m/min) gives more blade strikes per distance of forward travel.
• Front baffle is designed to better manage airflow and control clippings.
• Ductile cast-iron blade-spindle housings have a gusseted design for extra reinforcement.
• Spindle-pocket reinforcement for even greater structural durability.
• A raised discharge chute provides even clipping distribution.
• 7-gauge, 0.179-in. (4.5-mm) steel construction gives commercial durability.
• 3-spindle design provides a smooth, even cut.
• The trim edge of the deck is equipped with a bumper that provides great abrasion resistance to protect the machine and the property.
• Plastic discharge deflector reduces damage to foliage and resists bending.
• Formed, steel-deck design is forged from a single sheet of steel to eliminate corners where grass can collect.
• Deep deck gives increased vacuum action that reduces dropped clippings.
• Shaft drive from engine to mower gives excellent reliability.
• Belt drive efficiently transfers power from gearbox to spindles.
• Grease fittings are greased from the top for easy access.
• Quick-change cutting-height adjustment is easy to use.
• Mulching kits are available.
• Blade overlap of 1.57 in. (40 mm), nearly 0.79 in. (20 mm) greater than previous decks, reduces the number of missed grass blades.

72-in. (183-cm) 7Iron PRO mower deck

Features include:

• Higher blade tip speed - approximately 18,000 fpm (5486 m/min) gives more blade strikes per distance of forward travel.
• Front baffle is designed to manage airflow and control clippings.
• Spindle pocket reinforcement gives greater structural durability.
• Ductile cast-iron blade-spindle housings have a gusseted design for extra reinforcement.
• A raised discharge chute provides even clipping distribution.
• 7-gauge, 0.179-in. (4.5-mm) steel construction gives commercial durability.
• 3-spindle design gives a smooth, even cut.
• The trim edge of the deck is equipped with a bumper that provides great abrasion resistance to protect the machine and the property.
• Plastic discharge deflector reduces damage to foliage and resists bending.
• Formed, steel-deck design is forged from a single sheet of steel to eliminate corners where grass can collect.
• Deep deck gives increased vacuum action that reduces dropped clippings.
• Shaft drive from engine to mower gives excellent reliability.
• Belt drive efficiently transfers power from gearbox to spindles.
• Grease fittings are greased from the top for easy access.
• Quick-change cutting-height adjustment is easy to use.
• Mulching kits are available.
• Blade overlap of 1.57 in. (40 mm), nearly 0.79 in. (20 mm) greater than previous decks, reduces the number of missed grass blades.

	60-in. (152-cm) Side-Discharge	72-in. (183-cm) Side-Discharge
Mower type	7Iron PRO - forged deck	7Iron PRO - forged deck
Mower compatibility:
Discharge	Side	Side
Mulching capability	Optional field-installed kit	Optional field-installed kit
Cut-height range	1.5-5 in. (3.8-12.7 cm) 0.25 in. (1.3-cm) increments	1.5-5 in. (3.8-12.7 cm) 0.25 in. (1.3-cm) increments
Cutting width	60 in. (152 cm)	72 in. (183 cm)
Height-of-cut adjustment	Turning knob with foot assist	Turning knob with foot assist
High lift blades:
Blade length	21 in. (53 cm)	25 in. (64 cm)
Blade width	3 in. (7.6 cm)	3 in. (7.6 cm)
Blade thickness	0.25 in. (6.35 mm)	0.25 in. (6.35 mm)
Blade tip speed	Approximately 18,000 fpm (5486 m/min)	Approximately 18,000 fpm (5486 m/min)
Number of blades	Three	Three
Blade spindles:
Bearings	Grade=ABEC-1	Grade=ABEC-1
Spindles	Cold-forged and heat-treated	Cold-forged and heat-treated
Spindle housings	Ductile cast-iron	Ductile cast-iron
Wheels:
Front anti-scalp rollers	Standard	Standard
Rear anti-scalp rollers	Standard	Standard
Deck construction	One-piece forged steel	One-piece forged steel
Deck thickness	7-gauge steel 0.179 in. (4.5 mm)	7-gauge steel 0.179 in. (4.5 mm)

For professional landscapers and government municipalities requiring rear discharge placement of grass and debris, John Deere FastBack PRO rear-discharge mower decks deliver a commercial zero-turn mowing solution for both gas and diesel machines. Advantages of a rear-discharge mower include:

• Less chance of damage from objects being thrown from the mower deck
• Time savings with the ability to mow closely around fixed objects with either side of the deck
• A cleaner mowing experience by lessening the amount of debris that can blow onto the operator

A rear-discharge mower deck is ideally suited for:

• Schools
• Parks
• Playgrounds
• Traffic areas (city boulevards, roadsides, etc.)
• Areas with long, grassy spots that need to be cut, where you are not as concerned about wide dispersal of grass (park areas, roadsides, etc.)*

*NOTE: Operators maintaining turf outside of target areas are encouraged to evaluate rear-discharge dispersion through a cut quality demonstration to ensure satisfaction.

Compatibility

Mower deck

Z930M

Z950M

Z955M EFI

Z960M

Z975M EFI

Z950R

Z955R EFI

Z965R EFI

Z970R

Z985R EFI

Z994R

Z997M

Z997R

60-in. (152-cm) FastBack PRO rear- discharge

x

x

x

x

x

x

x

x

72-in. (183-cm) FastBack PRO rear- discharge

x

x

x

x

x

x

x

x

x

x

Commercial-quality deck design

A large volume of material can be thoroughly processed with the deep-deck design:

• Unique baffling system is designed to reduce clumping and windrowing often associated with rear-discharge mowers.
  • Efficiency is enhanced with baffles surrounding each blade to control material as it is moved to the rear.
  • Material exits the deck quickly as the baffles are lower at the rear.
  • Movement of material is controlled to minimize the likelihood that clippings are thrown onto unwanted areas.
• Less debris gets on the operator as material is directed to the rear and toward the ground.
  • Debris is kept low and directed into the turf by the flexible rear shield.

Level cut

The deck is suspended from and supported by the machine to provide a level cut. Mower deck wheels and rollers help smooth out the mowing job in uneven conditions and reduce the chance of scalping the lawn:

• Two wide front rollers at the center of the mower support the deck when necessary to prevent scalping.
• Wheels at all four corners protect the deck from scalping at the sides of the mower.
• Continued effectiveness results from wheels and rollers that are double captured for extra strength, which reduces the chance of damage.
• Height of rollers and wheels is adjustable to suit mowing conditions.
  • Higher settings (shown in images) are used when mowing at lower cut heights and for rougher conditions at all cut heights where you want to reduce the chance of the wheels hitting the ground.
  • Lower settings are used for higher cut heights and for helping to smooth out the mowing job.
• Mower cut height is adjustable from 1 to 5.5 in. (2.54 to 14 cm) in 0.25-in. (0.64-cm) increments from the machine operator’s station.

Heavy-duty components for long life

These rear-discharge decks are designed to stand up to heavy-duty commercial use:

• Superior strength and durability come from a 7-gauge, 0.179-in. (4.6-mm) steel deck.
• Experience extra strength and long life with a fabricated deck design that is formed, welded, and reinforced for extra protection from damage.
• The front of the deck is protected from damage by a 1.5-in. (3.8-cm) tall by 0.5-in. (1.3-cm) thick solid steel bar welded to the mower deck for additional strength.
• Both sides of the deck have bumpers that are made from compression molded ultra-high molecular weight (UHMW) polyethylene plastic.
  • The bumpers provide great abrasion resistance to protect the machine and the property.
  • Additional strength is provided by a 0.5-in. (1.3-cm) by 0.5-in. (1.3-cm) thick solid-steel bar.

Durability is designed into the mower blade drive system:

• Reliably powered by a universal joint shaft drive from the vehicle transmission to a heavy-duty right-angle, cast-iron gearbox (Z997M, Z997R, Z998R)
• Dependable v-belt drive system

Extra reliability and long life are provided by cast-iron blade spindle housings:

• Ductile cast-iron material provides superior impact strength.
• Gusseted design puts reinforcement where it is needed.
• Strength of cast iron protects against damage from blade impacts.
• Grease pressure-relief valve minimizes seal damage from overfilling with grease and keeps debris from entering housing.
• Chance of deck-shell damage is minimized with the 8-in. (20.3-cm) diameter housing and six mounting bolts that distribute loads and impacts.
• Ability to be reliably rebuilt is provided by the use of cast iron.

Ease of service

Minimal service requirements increase uptime:

• Quick-release belt covers do not require tools or the removal of a ring clip; just lift one corner of the cover and rotate it slightly to remove.
  • A hole in the deck tab is provided for use of an optional ring clip for extra security, if desired.
  • This makes it quick and easy for you to clean out trash that may collect around the spindle sheave.
• Convenient spindle greasing with fittings at the top of spindle shafts are accessible through a hole in the top of the spindle/belt covers.
  • The center spindle is accessed by no-tools removal of the vehicle floor pan.
• There is only one belt to service.

Extra convenience

Extra convenience and security are provided by a serrated surface that is welded to the top left corner of the deck, providing additional traction when entering and exiting the operator station.

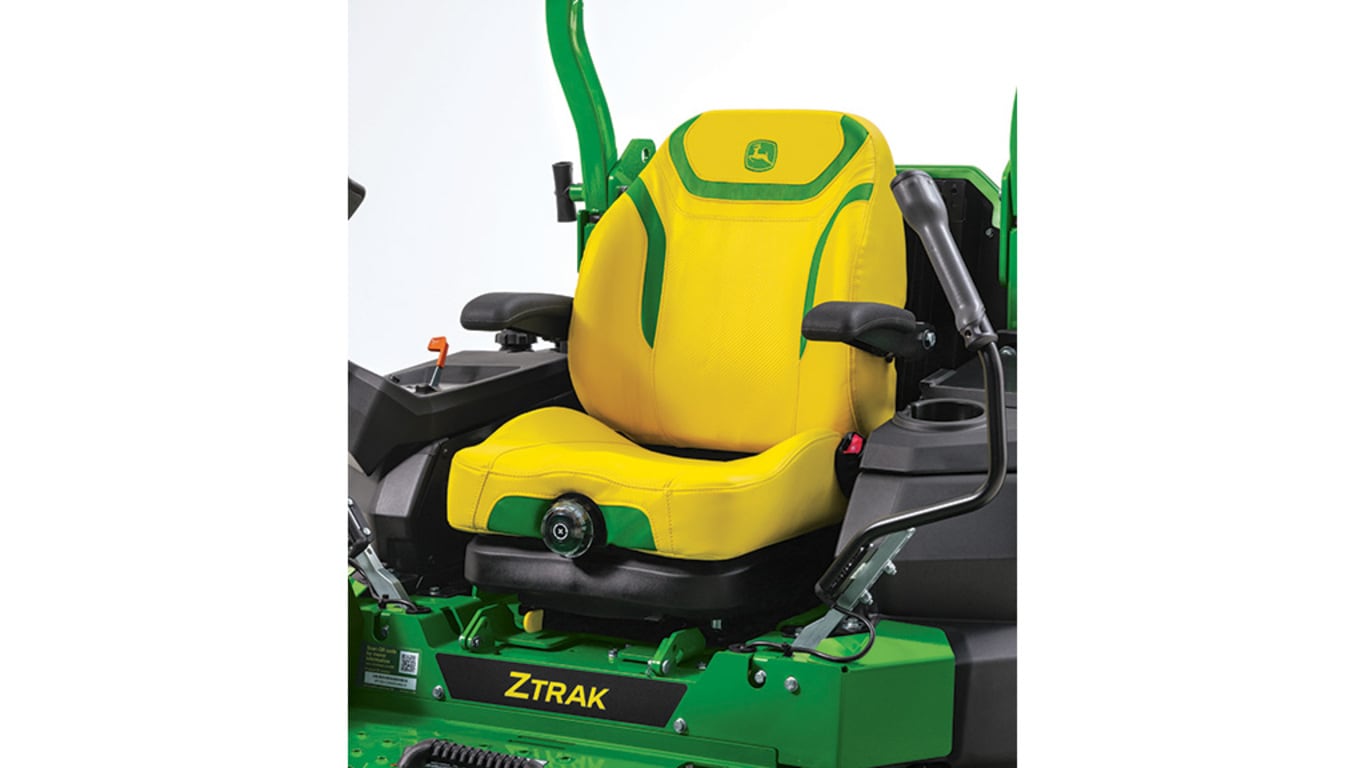

The Z997M Diesel ZTrak™ Mower enables operators to be productive by locating frequently used controls at the operator’s fingertips.

Two-lever hydrostatic drive control

ZTrak Mowers include large, ergonomically angled control levers with specially padded grips and built-in electronic controls.

• Operators can select the ground speed and direction control simply by moving levers forward or in reverse.
• Positive neutral lock position for the levers provides added safety.
• Wide-bend steering levers swing out easily for entry and exit from the operator platform.

Comfort and convenience handles

The comfort and convenience package includes large, ergonomically angled control levers with specially padded grips and built-in electronic controls to raise or lower the mower deck and disengage the mower blades.

The push button (A) on the left motion control lever raises the mower deck. The push button (B) on the right-hand control lever shuts off the power take-off (PTO).

Once the PTO has been shut off using the button, the PTO switch must be pushed down and pulled up again to engage the PTO.

2-in. (5-cm) digital display provides fuel and diagnostic information

The Z997M includes a 2-in. (5-cm) digital display which provides fuel level, hours, and diagnostic trouble codes (DTCs).

Automatic park brake system is built into steering levers

The integrated park brake is automatically applied when steering levers are stowed outward and disengaged when the steering control levers are placed into the operating position.

Z997M ZTrak™ Mowers are equipped with a deluxe comfort professional-grade seat. It provides the operator with an enjoyable ride by allowing the operator the ability to adjust the seat to their preference. It includes:

• 24-in. (60.9-cm) high-back seat
• Suspension-reaction dial that adjusts vertical suspension for operator weight and a firm or soft ride (B)
• Adjustable armrests
• Adjustable back angle
• ComfortGlide suspension with 2-in. (50.8-mm) fore/aft seat travel to absorb bumps
• Vibration reduction
• 3-in. (7.6-cm) fore-aft adjustment while operator is seated
• Retractable seatbelt

ComfortGlide fore/aft suspension gives superior ride comfort over uneven areas:

• Seat can travel up to 2 in. (50.8 mm) fore and aft to absorb bumps for a significant enhancement to ride comfort.
• Control lever (A) provides the ability to easily lock out fore/aft suspension movement if desired.
• One lever has three functions.
  • Slide seat forward and back 3 in. (10.2 cm) to allow the operator the ability to choose the leg room needed
  • Activate Comfort Glide fore/aft seat suspension
  • Lock out Comfort Glide fore/aft seat suspension

The Diesel ZTrak™ Mowers have an intuitive and ergonomically placed pin map height-of-cut system. The system provides 1- to 5.5-in. (3.8- to 12.7-cm) cutting heights in 0.25-in. (0.64-cm) increments.

Innovative wing-deck height-of-cut

On a Z998R ZTrak Mower, keeping the cut height of the wing decks matching the center deck is fast and clean, and does not involve relocating greasy spacers.



The front wing deck caster wheels use a turn-dial system (A). Simply remove the cap and magnetic locking key and turn the dial. The front caster shaft is engraved with height-of-cut markings that indicate the cut height.



The rear mower deck wheels use a spring-locking pin (B). Simply move the pin to adjust the height. The shaft is also engraved with height-of-cut markings.



The entire system is designed to be adjusted without tools in the field. In the shop, a ratchet or power driver can be used to speed adjustments.

Comfort and convenience handles put deck lift at the operator’s fingertips

The standard comfort and convenience handles include built-in electronic controls to raise or lower the mower deck.

The service points of Diesel ZTrak™ Mowers are easy to see and access:

• Open engine compartment allows full access to engine components and service points.
• Engine heat is kept away from the operator.
• Flip-up seat allows easy access to the hydraulic system.
• Flip-out floor panel allows easy access to deck spindles.

Hood latch and hood pivots

Hood has one central over-center type latch.



The hood pivots to make the hood easier to remove and install for ease of servicing the engine.

Easy to clean intake screen is in clean location

To reduce debris ingestion, the cooling-air intake and radiator of Diesel ZTrak Mowers are located in a clean location in front of the engine. Warm air exits the rear of the mower away from the operator. The radiator screen can be removed for cleaning and to provide access to the radiator, oil, and fuel coolers.

Mower deck drives are easy to access

Minimal mower deck drive maintenance requirements increase uptime:

• Flip-up foot panel provides access to the top of the center deck for cleaning and to grease the center spindle.
• Quick-release belt covers do not require tools or the removal of a ring clip; just lift one corner of the cover and rotate it slightly to remove.
  • A hole in the deck tab is provided for use of an optional ring clip for extra security, if desired.
  • This makes it quick and easy for you to clean out trash that may collect around the spindle sheave.
• Convenient spindle greasing with fittings at the top of spindle shafts are accessible through a hole in the top of the spindle/belt covers.
• There is only one belt to service.

Onboard maintenance information

Diesel ZTrak Mowers come with a maintenance label that is conveniently located on the underside of the hood. The label is written on English and Spanish languages and includes daily service check points, approximate fluid capacities, and tire pressures.

Quick response (QR) codes link to owner information web pages

To speed access to owner information web pages, a QR code is printed onto a product identification number (PIN) label located under the right steering lever. The owner information web pages that include links to:

• Safety and how-to videos
• Operator’s manuals
• Parts catalogs
• Maintenance reminder sheets
• Attachments
• Warranty statements

Optional service jack kit and jack (Z997M and Z997R)

The front frame of the Z997M and Z997R Diesel ZTrak Mowers are pre-drilled to accept the optional jack kit and jack:

• The jack makes servicing the underside of the mower deck safer and easier.
• Placed in the storage position, the jack can be carried on the machine, always available for use.
  • The jack will need to be removed when using front ballast that is required for a rear material collection system.

M Series 3-year, 1200-hour bumper-to-bumper warranty

An exclusive 2-year, unlimited hour/3-year, 1200-hour (whichever comes first) bumper-to-bumper warranty is standard for all John Deere M Series Mowers. The warranty is best in its class and places John Deere at the forefront of commercial mowing. It is also hassle free, with one company handling all of the paperwork.

NOTE: 36 months or 1200 hours, whichever comes first. For the first 24 months, there is no hour limitation.

R Series 3-year, 1500-hour bumper-to-bumper warranty

An exclusive 2-year, unlimited hour/3-year, 1500-hour (whichever comes first) bumper-to-bumper warranty is standard on all John Deere R Series mowers. The warranty is best in the industry and puts John Deere at the forefront of commercial mowing. It is also hassle free, with one company handling all of the paperwork.

NOTE: 36 months or 1500 hours, whichever comes first. For the first 24 months, there is no hour limitation.

The durability features of the frame are as follows:

• Heavy-duty, thick-gauge steel channel mainframe for strength and durability
• Cast I-beam caster arms to handle the beating and pounding professional mowers receive
• Wide-open access for maintenance and cleaning

Durable rear bumper provides protection

A rear bumper is provided on the machine for rear protection. The bumper is made of compression molded ultra-high molecular weight (UHMW) polyethylene plastic which provides abrasion resistance to protect the machine and the property.

The hydrostatic drive features a Kanzaki® DUP 17SB dual-unitized hydraulic pump. This dual pump, in a single housing, provides longer life and less maintenance than competitive units.

The pump features a shaft-driven fan for added cooling and longer component life. The swash-plate bearings are roller-type versus ball-type bearings for a longer overall pump life.

The transmission module integrates the dual pumps and steering valves in one single housing. The pump is shaft-driven from the engine. An isolator ensures reduced vibration between the engine and the transmission module.



Two wheel motors are installed on the chassis to directly transfer power to both wheels. Commercial-grade, heavy-duty Hydro-Gear HGM18L 17.8-cu in. (292-cc) wheel motors are also important components of the overall drive system efficiency.



Rigid hydraulic lines are installed between the hydraulic module and wheel motors for long life.



An internal wet disk park brake is integrated in the transmission.



Kanzaki is a trademark of Kanzaki Kokyukoki Manufacturing Company. Hydro-Gear is a trademark of Hydro-Gear Limited Partnership.

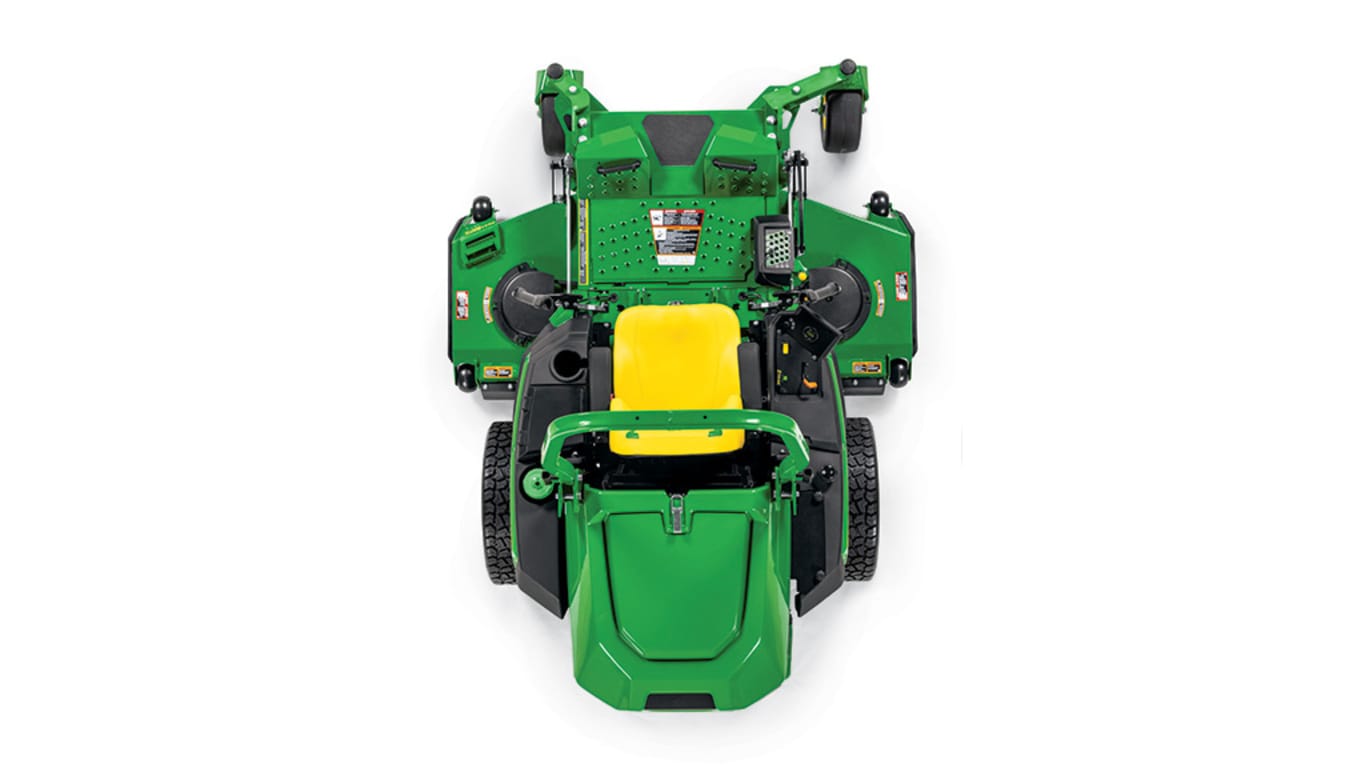

The spacious operator station has been designed for comfort, visibility, and ease of use:

• Getting on and off is easy with the flat operator platform.
• Convenient-to-use controls located close to the operator are color coded and designed for easy identification and operation.

The ROPS and seat belt work in conjunction to provide a protective zone around the operator:

• It reduces the operator’s risk of being crushed under the vehicle should it overturn.
• When used with the seatbelt, the ROPS can reduce the severity of injury in the event of a rollover.
  • Use of the seat belt is recommended when operating with ROPS in the upright position.

Foldable ROPS and a retractable seat belt are standard equipment:

• Position adjustment pins provide a good grip and make changing the angle of the ROPS easier.
• If operating in low clearance areas, the ROPS can be folded down and secured out of the way.
• Under normal operation, the ROPS should be in the upright position.
• See operator’s manual for more information on ROPS.
• Door height of most garages will accommodate the machine with ROPS in the full-raised position.
  • Easy-fold ROPS improves the ability to store the mower in structures with a lower door opening.

The retractable seat belt is within easy reach of the operator for use when operating with the ROPS up.

ROPS are foldable to allow trimming, such as under trees or bushes:

• To fold, remove two pins and rotate the top of the ROPS.
• Adjustment can be made from the operator's seat.
• ROPS must be in the upright and locked position when low clearance is not required.

The folding ROPS performance is certified at the date of manufacture according to ISO 21299.

Ergonomic ROPs T-Handle

The ROPS on Diesel ZTrak™ Mowers is equipped with an ergonomic T-handle. Unlike long-pin designs, the large T-handle provides leverage to release the pin and can be turned 90 degrees to keep the pin retracted while the ROPS is repositioned. Springs snap the T-handle pin into place allowing the operator to use both hands to move the ROPS.



ROPS position	Height at top of ROPS
Full height	77.3 in. (196 cm)
Down	50.9 in. (129 cm)

Safety certification

John Deere commercial mowers are evaluated by the manufacturer (John Deere Turf Care) and conform to American National Standards Institute (ANSI) / Outdoor Power Equipment Institute (OPEI) 5395-1 and 5395-3 safety requirements for combustion-engine-powered lawnmowers.

Optional Light-emitting diode (LED) work lights

BUC11975 LED work lights are available as a field installed attachment.

Optional LED beacon light

BUC11406 LED beacon light is available as a field installed attachment. The beacon light is short to avoid damage.

Overview

A JDLink™ M Modem connects a commercial mower to the John Deere Operations Center, which enables you to manage your fleet more efficiently, increase productivity, and reduce labor costs. With a modem and Operations Center, you are always connected to the work in progress and can make timely adjustments to keep your fleet mowing.

JDLink M Modem

A JDLink M Modem is standard equipment on model year 2024 and newer TerrainCut Front and Wide-Area Mowers.

A modem can be field installed on:

• Model year 2024 and newer Z700 ZTrak™ Mowers
• Model year 2024 and newer gasoline-powered Z900 ZTrak Mowers
• Model year 2024 and newer Z994R ZTrak Mowers
• Model year 2021 and newer Z997R ZTrak Mowers
• Model year 2024 and newer Q800 QuikTrak™ Mowers
• Model year 2025 and newer R Series commercial walk-behind mowers
• Model year 2022-2023 TerrainCut Front Mowers
• Model year 2023 TerrainCut Wide-Area Mowers

See compatibility section for serial number breaks and requirements.

John Deere Operations Center

The John Deere Operations Center tracks your fleet and provides tools to analyze mower data. The connected features vary by mower model.

Models	Location and status	GPS speed	Geofencing and curfews	Engine hours	Maintenance planner	Machine Analyzer Tool	Fuel level	Fuel consumption	Diagnostic trouble codes	Service Advisor Remote
Z700 ZTrak Mowers	X	X	X	Key	X	X	---	---	---	---
Z900 ZTrak Mowers with carbureted engines	X	X	X	Key	X	X	---	---	---	---
Z900 ZTrak Mowers with EFI engines	X	X	X	Sync	X	X	X	X	X	X
Z994R ZTrak Mowers	X	X	X	Key	X	X	---	---	---	---
Z997R ZTrak Mowers	X	X	X	Sync	X	X	---	X	X	X
E Series QuikTrak Mowers	X	X	X	Key	X	X	---	---	---	---
Q820M, Q850M, and Q850R QuikTrak Mowers	X	X	X	Sync	X	X	X	---	X	---
Q865R EFI QuikTrak Mowers	X	X	X	Sync	X	X	X	X	X	X
R Series commercial walk-behind mowers	X	X	X	Key	X	X	---	---	---	---
1550 TerrainCut Front Mowers	X	X	X	Key	X	X	---	---	---	---
1570, 1575, 1580, and 1585 TerrainCut Front Mowers	X	X	X	Key	X	X	---	X	X	X
1600 TerrainCut Wide-Area Mowers	X	X	X	Key	X	X	---	X	X	X

Location and status

The JDLink M Modem regularly transmits the location and operational status of each mower in the fleet so you can monitor mowing progress in Operations Center.

• Location history-Display of map with current and past locations of each mower.
• GPS Speed-Maps each mower’s current speed, based on GPS location data, so you can target operator training.
• Hours of operation-Reports the time of day the vehicle has been operated.
• Geofencing-Alerts when a mower enters or exits a prescribed area, for example if the mower has been stolen or an operator entered an area that should not be mowed.
• Curfews-Alerts if the mower is operating outside prescribed times, for example residential areas with early-morning noise restrictions.

Engine hours

The modem regularly transmits the mower’s engine hours to inform maintenance planning and balance use.

• Sync-The mower reports actual engine hours to the Operations Center.
• Key-Engine hours are estimated by monitoring the key switch. Engine hours can be corrected in Operations Center.

Maintenance planner

Factory or custom maintenance plans can be established in Operations Center. Maintenance alerts are sent when engine hours reach maintenance intervals.

Machine Analyzer Tool

On select products, the modem reports the time the mower spent transporting, idling, and working. The Operations Center’s Machine Analyzer tool reports usage data which allows you to analyze operator behavior, identify causes of low productivity, and initiate corrective actions.

Fuel level

On select products, the modem reports the fuel level. On these products, an analysis of fuel consumption is available in the Operations Center Machine Analyzer Tool. Measuring fuel consumption enables you to address causes of excessive fuel use.

Diagnostic trouble codes (DTCs)

On select products, the modem transmits the trouble codes generated by the mower’s control units to the Operations Center. Addressing DTCs can reduce downtime and repair costs. For example, a low-engine oil pressure DTC can indicate an engine is low on oil. Addressing the issue can prevent costly downtime and repairs.

To help address issues quickly, when a DTC is generated, the Operations Center can display a push notification on the mobile app and send an email. Operations Center can also be configured to limit notifications to stop-level severity DTCs.

Service Advisor Remote

On select products, John Deere dealers can perform remote diagnostics, software programming, and adjustments without the cost of a service call.

Compatibility

A JDLink M Modem is standard equipment on model year 2024 and newer (SN 110,001-) TerrainCut Front Mowers and model year 2024 and newer (SN 690,001-) TerrainCut Wide-Area Mowers.



A JDLink M Modem can be field installed on the commercial mowing products listed below. Field installation attachments simplify modem installation, and include brackets, mounting hardware, harness, and instructions. Field installation requires a JDLink M Modem to be ordered separately. The field installation attachments include a wiring harness therefore the modem should be ordered with the less harness option code.



Model	Compatible model years	Installation attachment
Z700 ZTrak Mowers	2024 and newer (SN 080,001-)	BUC11759
Gasoline-powered Z900 ZTrak Mowers	2024 and newer (SN 130,001-)	BUC11759
Z994R ZTrak Mowers	2024 and newer (SN 070,001-)	BUC11759
Z997R ZTrak Mowers	2021 and newer (SN 070,001-)	BUC11908
QuikTrak Mowers	2024 and newer (SN 010,001-)	BUC11744
R Series commercial walk-behind mowers	2025 and newer (SN 070,001-)	BUC11918
TerrainCut Front Mowers	2022-2023 (SN 080,001-110,000)	BUC11797
1600 TerrainCut Wide-Area Mowers	2023 (SN 680,001-690,000)	BUC11797

John Deere leads the commercial zero-turn mower industry with use of the Michelin X Tweel Turf technology.

Michelin is a world leader in tire manufacturing and technology. This airless radial tire solution is an industry first for John Deere, which provides a smoother ride for the operator and additional advantages to John Deere owners.

Advantages of the Michelin X Tweel Turf include:

• Mowing performance is improved.
• Unique energy transfer within the poly-resin spokes reduces the bounce associated with pneumatic tires, to give a smoother ride.
• Rutting is reduced because the Michelin X Tweel Turf has more support across the surface for improved flotation and better ground contact.
• Unique energy transfer within the poly-resin spokes reduces the bounce associated with pneumatic tires, to give a smoother ride.
• Excellent curb climbing is possible due to the Michelin X Tweel Turf construction and flexibility.
• More consistent cut quality is achieved because inconsistent tire pressure is eliminated.
• Uptime is improved.
• The exclusive technology eliminates downtime and associated cost due to flat or damaged tires. Punctures and sidewall damage no longer result in downtime.
• Cost of operation is reduced.
• Cost of repairs and maintenance is reduced. One single unit replaces the current tire, wheel, and valve assembly. There is no need for complex tire-mounting equipment.
• No need to spend time checking and optimizing tire pressure.
• The need to purchase and stock plug kits and spare tires is eliminated, particularly for professional landscape contractors and government agencies who normally stock them.
• The tire tread will last up to three times longer than current pneumatic tires because automotive-grade rubber is used for the tread.

Heavy-duty construction provides the ultimate in performance and reliable operation:

• High-strength poly-resin spokes carry the load.
• Four-hole, heavy-duty steel hub easily bolts onto any Z997M and Z997R ZTrak Mower.
• Deep, open-tread design provides excellent cleaning and traction.
• Zero degree, high-tensile proprietary carcass provides great lateral stiffness while resisting damage from impact and penetration.

Tires deliver exceptional traction, maneuverability, and reliability

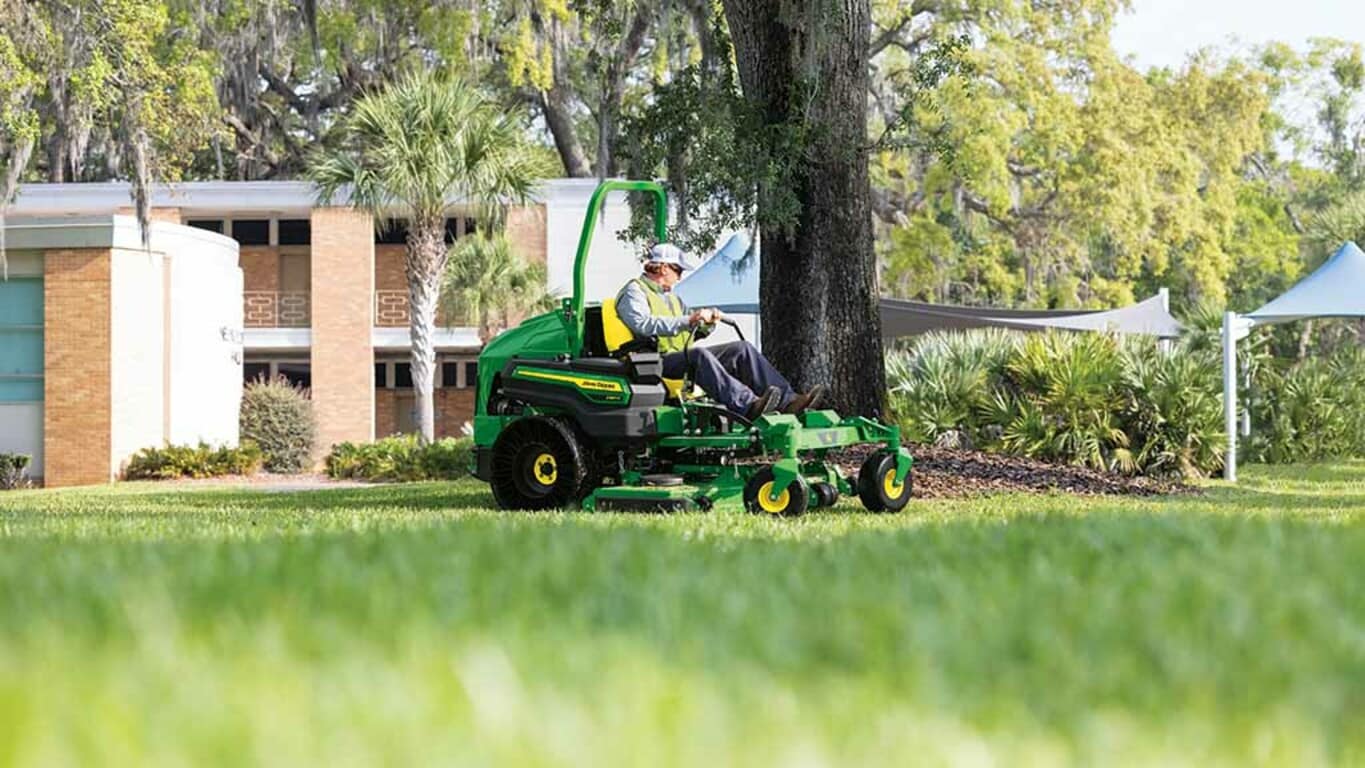

The Z997M and Z997R ZTrak Mowers are equipped with 15x6-6 flat free front caster tires that provide:

• Excellent reliability and uptime
• Low center of gravity to increase hillside mowing capability
• Caster wheels and caster wheel towers with sealed bearings for long life and easy steering
• Offset front caster wheels to help improve the inside corner-trim performance and reduce between-blade striping

A choice of rear wheel options is available for factory installation:

• 26x12-12 4 PR, square shoulder, pneumatic drive tires in base equipment for excellent traction, flotation, and curb climbing
• 26x12-12 Michelin X Tweel Turf airless radial tire technology option for a smoother ride and more uptime

Michelin, X, and Tweel are trademarks of Compagnie Générale des Etablissements Michelin SCA.
