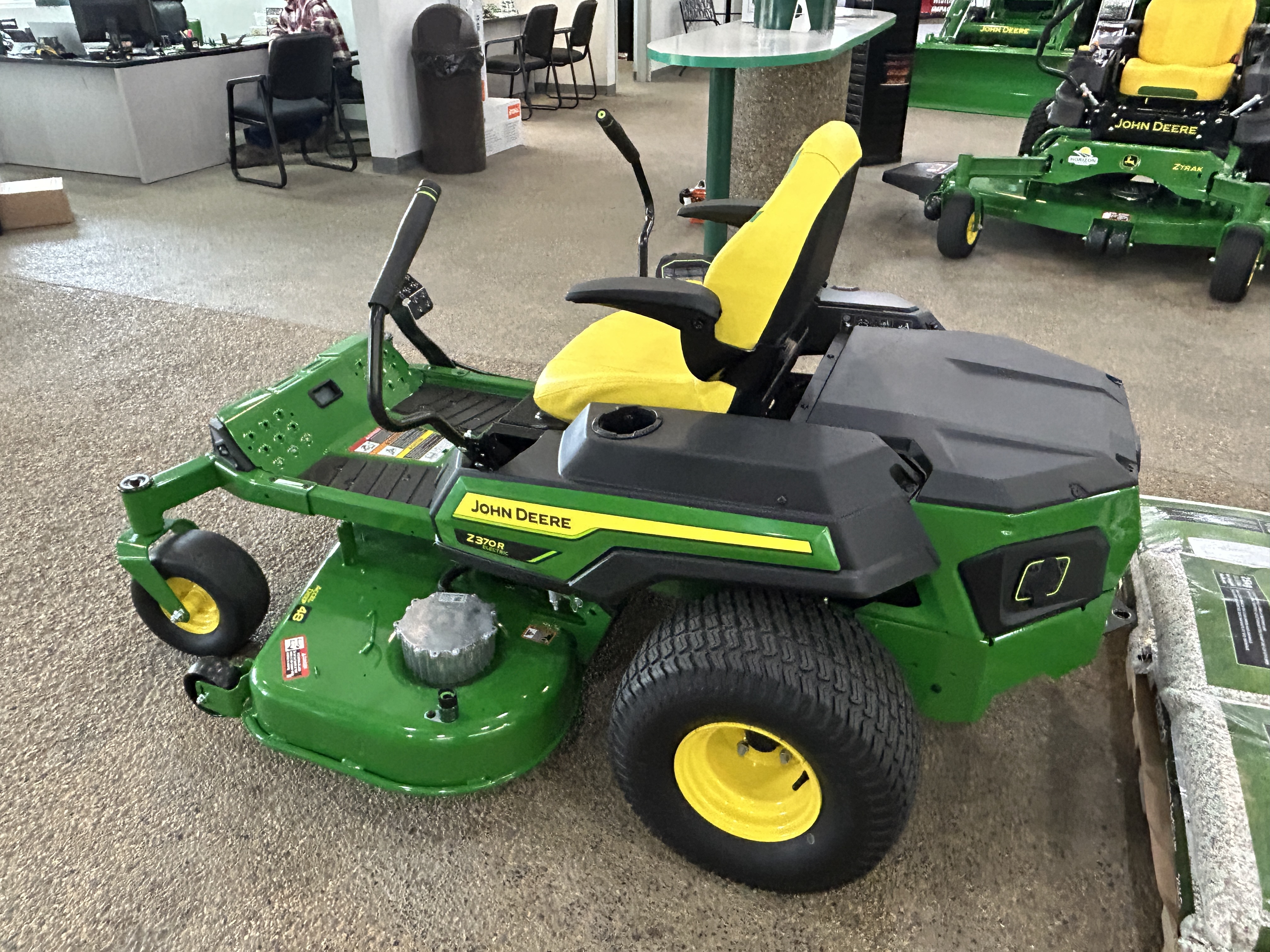

Z370R Electric ZTrak™ Mower

Overview

The Z370R Electric ZTrak Mower delivers the productivity and cut quality of a gas-powered Z300 ZTrak Mower. Many proven components, including the frame and Accel Deep™ Mower Decks, are shared with the gas-powered models.

Accel Deep Mower Decks mow well fast

Mower decks are 4.83 to 4.97-in. (12.3 to 12.6-cm) deep with a flat top and large discharge opening.

Cut and suspended material can exit the mower deck without getting recut:

• Improves mowing capacity
• Reduces power consumption to extend run time

Stamped-steel construction eliminates sharp edges and corners:

• Less material build-up
• Less turbulence and power consumption
• Industry leading cut-quality

Adjustable mower wheels, positioned just above ground level give a more even cut and reduce scalping.

Optional MulchControl™ with a 42-in. (107-cm) mower deck enables you to mulch frequently:

• Deep mower-deck design allows for optimal recutting and even distribution of clippings
• Converts to side-discharge in seconds if the grass is too tall to mulch

Optional 6.5-bu (230-L) rear bagger with a 42-in. (107-cm) mower deck for collecting grass clippings and leaves.

Mow up to 2 acres on a charge with confidence

Standard 3.56 maximum (3.20 nominal) kilowatt-hour (kWh) battery has up to 40 percent more capacity than competitor’s batteries.

A Z370R with a 42-in (107-cm) mower deck can confidently mow 2 acres on a charge. AZ370R with a 48-in (122-cm) mower deck can confidently mow 1.8 acres on a charge.

The efficient Accel Deep Mower Decks with optimized blades extends runtime:

• Optimized blades give excellent cut quality, resilience to damage, and long wear life like the blades used on gas-powered Z300 ZTrak Mowers.

Go home mode gets you back:

• When the battery nears depletion, the mower blades switch off and a battery reserve allows you to drive the mower to a charging outlet
• Use the battery to depletion without getting stranded

Productivity

The electric transaxle has the same 7-mph (11.3-km/h) maximum forward travel speed as the transaxle used on gas-powered Z300 ZTrak Mowers.

The wider 48-in. 122-cm mower deck is more productive and extends further leftward which improves trimming.

Z370R Electric ZTrak™ Mower

Customer-provided extension cord used to charge mower

Overview

The Z370R Electric ZTrak Mower frees you from the hassles of gasoline.

Electric powertrain

Start your weekend with the scent of fresh cut grass instead of a trip to the gas station

No spilling, transporting, smelling, or storing gasoline

Minimal maintenance

• No engine oil changes or disposal concerns
• No engine air filters to clean or replace
• No belts
• No grease points
• No need to add fuel stabilizer or remove fuel for seasonal storage

Onboard smart charger

Smart charger is built into the mower

• Doesn’t consume wall or counter space
• Doesn’t require moving the batteries between charger and mower
• No battery contacts to deteriorate
• Charge anywhere with a standard 120-volt outlet and grounded extension cord

Smart charger continuously monitors battery

• Ensures optimum charging rate based on battery level and environmental conditions
• Stops charging when battery reaches full charge, no need to unplug the mower
• Maximizes battery life

Washing a Z370R with a water hose

Overview

The Z370R Electric ZTrak™ is designed to withstand dust and water so you can confidently weather the conditions, wash the mower with a water hose, and even store the mower outdoors. The same weatherization technology used on John Deere’s agriculture and construction products is found on the Z370R for dependable, trouble-free performance.

Sealed battery with 5-year or 200-hour warranty

The battery is sealed to protect it from the elements:

• Meets IP66 (ingress protection) rating
  • Solid protection-no dust can enter battery
  • Water protection-no water can enter battery from washing
  • Competitive electric mowers do not meet this standard, leaving them vulnerable
• Rear cover provides additional protection to sealed battery and electrical hardware
• Backed by a 5-year or 200-hour, whichever comes first, warranty
• Optional PowerGard™ Lithium-Ion Battery Protection Plan extends battery warranty to 10 years or 400 hours

Rear cover

Sealed battery, on-board charger, and electronics with rear cover removed

Sealed motors and high-quality connectors

Sealed mower deck motor

Mower deck motor connectors

The mower deck motors are also sealed to keep dust and water from entering. High-quality electrical connectors are also used throughout the mower.

High-quality paint

All John Deere mowers are painted with a dual-stage E-coat process using powder-paint coatings to provide protection from fading and corrosion.

Z370R Electric ZTrak™ Mower

Z370R Electric ZTrak™ Mower

Overview

The Z370R Electric ZTrak Mower is built tough to provide many years of trouble-free service. Several proven components, including the frame and the Accel Deep™ Mower Decks, are shared with the gas-powered Z300 ZTrak models.

Frame

Z370R Electric ZTrak Mower

The Z370R Electric ZTrak Mower frame is constructed of heavy-duty formed and welded steel for strength, reliability, and long life:

• Robust 2.5-in. x 2-in. (6-cm x 5-cm) steel tubing in front and 1.5-in. x 2-in. (4-cm x 5-cm) steel tubing on the sides
• A front bumper protects the front of the mower from damage
• Caster wheel pivots have sealed bearings for easy steering and long life

Mower Decks

42-in. (107-cm) Accel Deep Mower Deck

48-in. (122-cm) Accel Deep Mower Deck

The Accel Deep Mower Decks are forged from heavy-gauge steel:

•   42-in. (107-cm) Accel Deep Mower Deck: 12-gauge, 0.105-in. (2.7-mm)
•   48-in. (122-cm) Accel Deep Mower Deck: 10-gauge, 0.135-in. (3.4-mm)

To withstand impacts both decks feature:

• Formed spindle pockets, side gutters, and deck-shell ribs that provide extra strength
• Double captured mower wheels for increased durability

The 48-in. (122-cm) Accel Deep Mower Deck includes a 5/8-in. (16-mm) diameter solid-steel rod side bumper that provides extra protection.

Transaxle

Z370R Electric ZTrak Transaxle

The electric transaxle is maintenance free and reliable:

• Sealed, with no hose connections that could leak
• Beefed-up 1-in. (2.5-cm) axles with four-bolt hubs

Overview

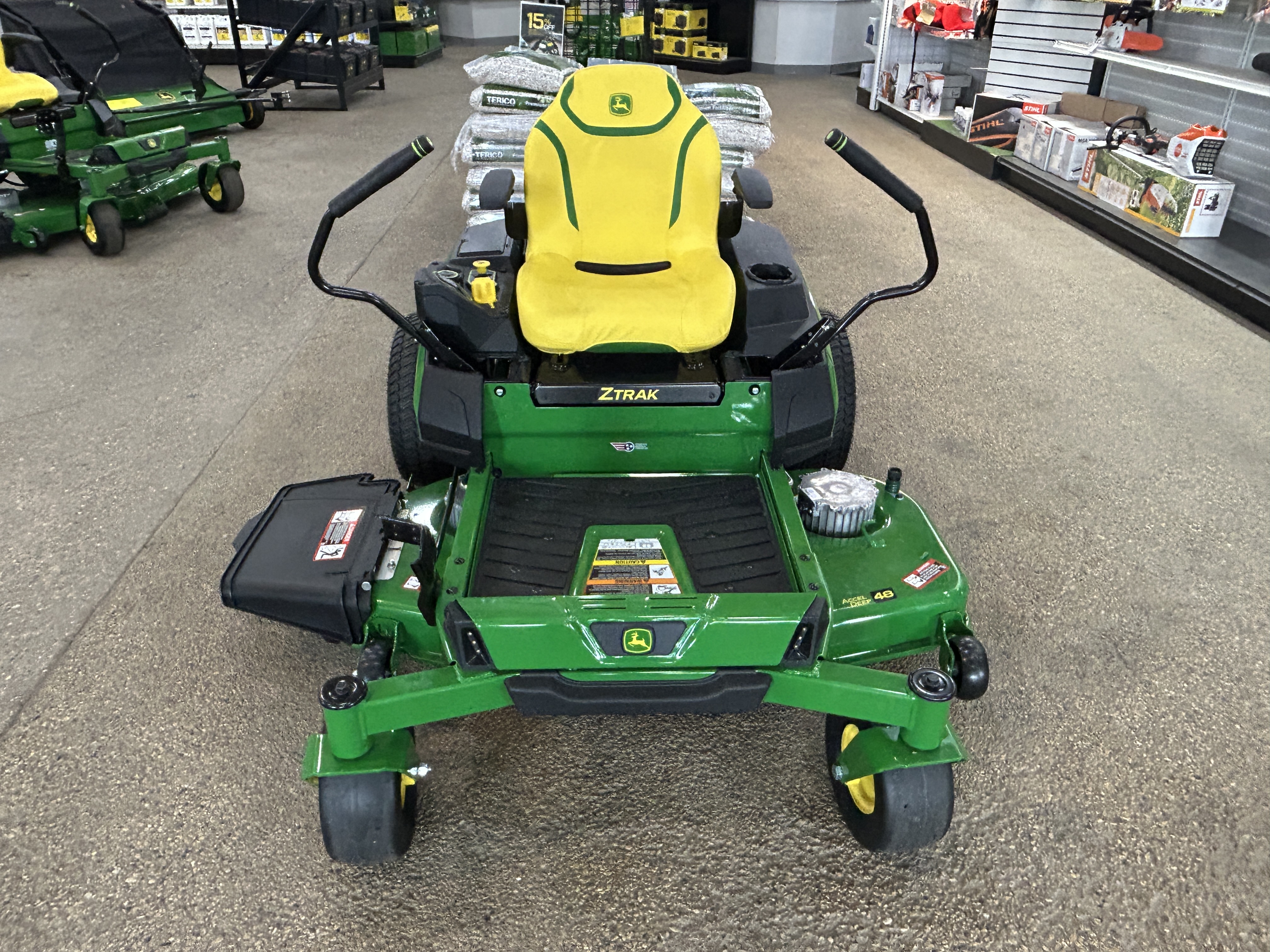

Z370R ZTrak™ Mower

Look forward to the weekend and mowing with your Z370R Electric ZTrak Mower. The mower’s seat, operator station, styling package, ergonomic controls, even the mower deck are designed to give a clean, quiet, and a smooth riding experience.

20-in. (51-cm) custom-tailored seat

20-in. (51-cm) custom-tailored seat

• Thick foam and spring suspension smooths out rough ground
• Stabilize yourself with side bolstering
• Rest your arms on standard armrests
• Eye-catching embroidered John Deere logo and green accents

Enjoy the peace and quiet of an electric powertrain

• No gasoline engine noise, vibration, or the high-pitched whine of a hydrostatic transmission
• Accel Deep™ Mower Decks keep the grass and dust under the deck and away from you
• Optional MulchControl™ with a 42-in. (107-cm) mower deck enables you to mulch frequently
• Prevents the discharge of material in mulching mode
• Converts to side discharge in seconds if the grass is too tall to mulch
• Standard floor mat dampens noise

Thoughtful design prioritizes your ergonomics

Z370R operator platform

Optional boarding step

• Enjoy a roomy and uncluttered operator platform with lots of legroom
• Rest your feet on footrests at the front of the platform
• Adjust the seat and motion-control levers to you

  • No tools are required to adjust seat fore-and-aft
  • Use the included tool to adjust the height and fore-aft position of the motion-control levers
• Easily lift the mower deck using the foot-lift pedal
• Optional boarding step makes it even easier to get on and off the mower

Attractive and modern styling accommodates creature comforts

Covered storage compartment charging a cell phone

Z370R lighting pattern

• Glance down and see the trim edge of the mower deck without leaning
• Contoured fenders improve visibility to the drive tires
• Securely hold your refreshment in a cup holder
• Store your cell phone in the covered storage compartment, charge it with the standard USB-C charging port
• Use the light emitting diode (LED) lights to finish mowing at dusk
• Forward-LED lights illuminate in front of vehicle
• Mid-LED lights light up the sides of the mower deck
• Large 11x6-5 front caster tires and large rear drive tires
• Smoother ride
• More traction for improved slope performance

Z370R Electric ZTrak™ Mower

Controls and display panel

Overview

The Z370R Electric ZTrak is designed to be intuitive to use, with controls at your fingertips.

Get started with the power button

Removing key pin from power button

• A simple hold of the power button activates mower to be ready to drive
• Key pin can be removed to prevent unintended access

Two easy-to-see displays keep you informed

Display panel

Status display

Display panel

• Located on the console near power button and mower controls
• Shows your battery level, operating mode, and operating hours
• Advises if an unsatisfied PTO, seat, or motion-control interlock is preventing operation
• Advises when the mower is in push mode or when park brake is applied
• Back lit for night visibility

Status display

• Built into footrest to increase visibility while mowing
• Displays battery level in five vertical segments
• Indicates mower status in top horizontal segment
  • Green-you’re ready to turn on PTO and start mowing
  • White-you’re in standby, you need to satisfy a PTO, seat, or motion-control interlock
  • Red-there is a mower fault that needs to be corrected by cycling the PTO switch, cycling the power button, or dealer service

You’re in control

Z370R Electric ZTrak mowing

Mode and PTO switch

The electric transaxle of the Z370R Electric ZTrak is tuned to be smooth, responsive, and operate like a gas-powered ZTrak Mower.

Three operating modes enable you to tailor the performance to your preferences and yard conditions:

• Low mode - 5-mph (8-km/h) travel speed for trimming or precise maneuvering
• High mode - Full 7-mph (11.3-km/h) travel speed for most mowing situations
• Bagging mode - Increased mower-blade speeds to support material collection* or challenging mowing conditions

Operating mode can be changed using the mode switch

*On the Z370R Electric ZTrak Mower, material collection is only available with the 42-in. (107-cm) mower deck.

Automatic park brake

Motion-control levers in park position

Motion-control levers in operating position

The integrated park brake is automatically applied when motion control levers are stowed outward and disengaged when levers are placed into operating position.

Mow at the right height every time

Cut-height adjustment knob

Foot pedal lift and cut-height adjustment knob

• Easily lift the mower deck using the foot-lift pedal
• A cut-height preset ensures the deck returns to the correct position
• Mower deck cutting height adjusts from 1.25 to 4.5 in. (3 to 11 cm) in 0.25-in. (0.64-cm) increments

The foot-lift pedal also provides a convenient way to temporarily raise the mower deck over an obstruction while mowing.

Overview

The Z370R Electric ZTrak™ Mower has several features to simplify maintenance.

Electric powertrain frees you from most maintenance obligations

• No engine oil changes or disposal concerns
• No engine air filters to clean or replace
• No belts
• No grease points
• No need to add fuel stabilizer or remove fuel for seasonal storage

Accel Deep™ Mower Decks are designed to reduce buildup and simplify cleaning

Deep flat-top mower deck

• Mower decks are deep with a flat top
  • Reduces the amount of material that escapes and drifts onto the operator and mower
  • Reduces the accumulation of debris on the underside of the shell
  • Few places on underside to catch material
• No tools are required to remove the footrest for full access the top of the mower deck
• No belts or belt guards to catch debris and necessitate cleaning
• Standard wash port injects water to clean the underside of the mower deck
• Optional MulchControl™ system with a 42-in. (107-cm) mower deck enables you to mulch frequently

  • Prevents the discharge of material in mulching mode
  • Converts to side discharge in seconds if the grass is too tall to mulch

Convenient service interval decal

Service interval chart

The service interval decal includes recommended service points, intervals, and part numbers.

Tracking adjustment

Tracking adjustment screws

You can quickly adjust the tracking from the operator seat using the included 13-mm wrench.

Push mode

Push-mode switch

If you need to push or tow the mower you can activate the push-mode switch which allows the drive wheels to roll freely.

Quick response (QR) codes link to owner information web pages

Example product identification number (PIN) label with QR code

John Deere riding lawn mowers are supported by owner information web pages that include links to:

• Safety and how-to videos
• Operator’s manuals
• Parts catalog
• Maintenance reminder sheets
• Attachments
• Warranty statements

To speed access to owner information web pages, a QR code is printed onto a PIN label located under the seat. Since each vehicle model has its own web page, the links are specific to the owner’s model. The QR code also includes the vehicle’s unique PIN which allows for additional customization of the owner information web page in the future.

Tie-down locations

Front and rear tie-down locations are provided for convenience and safety when trailering the mower.

Z370R Electric ZTrak™ Mower

Overview

The Z370R Electric ZTrak is covered by a 3-year or 200-hour, whichever comes first, bumper-to-bumper warranty. The battery has even more coverage, with a 5-year or 200-hour coverage period. An optional PowerGard™ Lithium-Ion Battery Protection Plan covers the battery for 10 years or 400 hours. An optional PowerGard Protection Plan Residential is available to cover the remaining components.

Benefits

• All repairs are serviced and administrated by your John Deere dealer, there is no need to file claims with component suppliers.

Z370R with spreader

Z370R with thatcher

Overview

The Z370R Electric ZTrak provides the same versatile attachments as gasoline-powered Z300 ZTrak Mowers.

Attachments add versatility, comfort, or protect your mower

• Standard rear hitch provides towing capability
• Pull a cart up to 250 lb (113 kg) of weight
• Use tow-behind spreaders, aerators, and thatchers
• Optional MulchControl™* enables you to mulch frequently
• Converts to side discharge in seconds if the grass is too tall to mulch
• Optional 6.5-bu (230-L) rear bagger* for collecting grass clippings and leaves
• Optional Grass Groomer attachment mows a striped pattern on your lawn
• Optional boarding step makes it easier to get on mower
• Optional sun canopy to shade you from the sun
• Optional rear bumper protects the rear of the mower
• Optional seat covers and protective covers protect your investment

*On the Z370R Electric ZTrak Mower, MulchControl and bagger are only available with the 42-in. (107-cm) mower deck.
