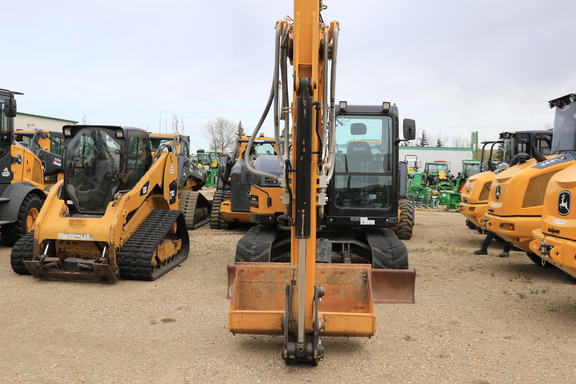

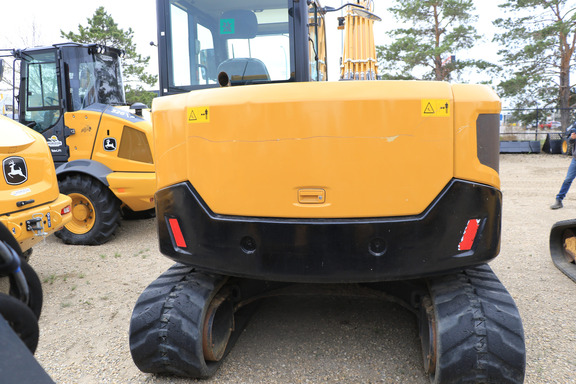

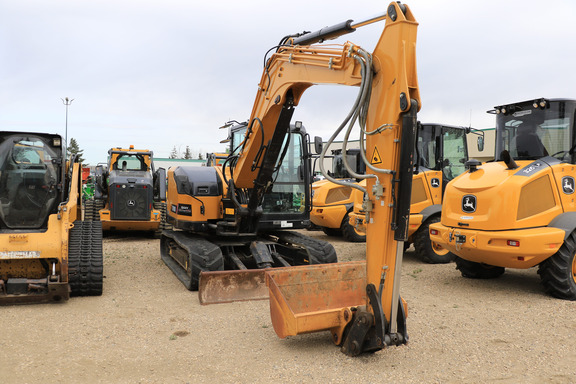

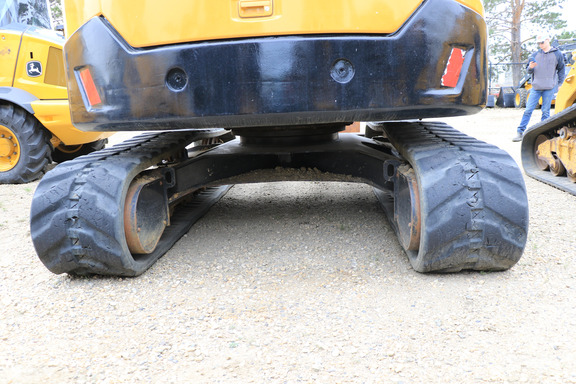

2021 Sany SY80U
Compact Excavators at Edmonton West AB

Description

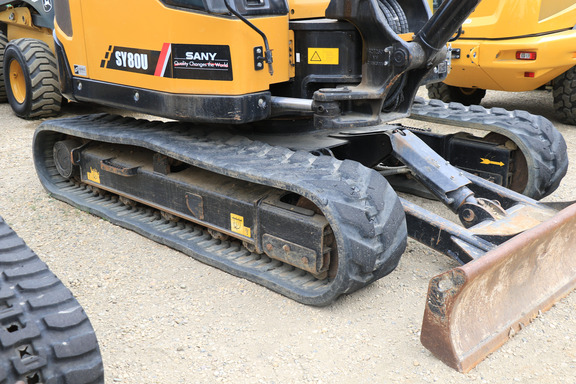

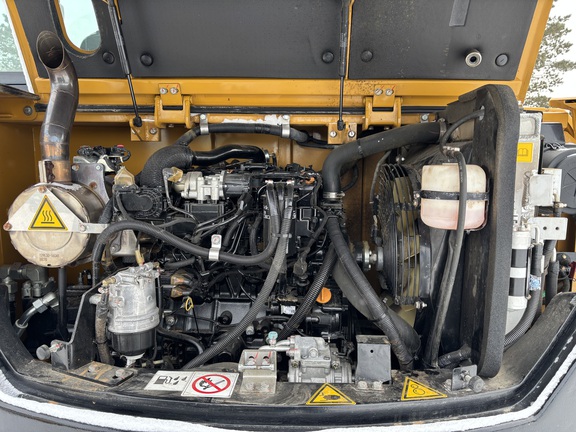

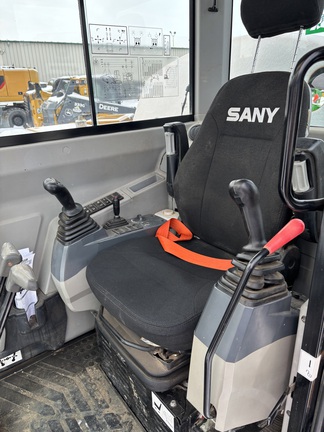

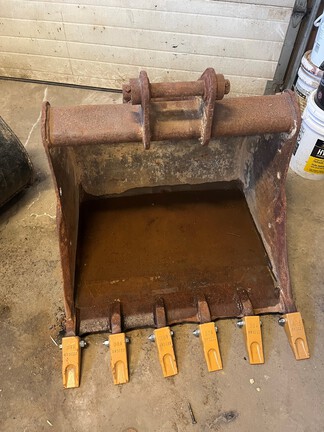

Gross Power 73 HP/ Dig Depth 14' 10.5"/ Operating Weight 19,401 lb/ Bucket Breakout 16,343 lb/ Cab w/ AC Medium Arm Rubber Tracks Aux Hydraulics/ Comes with 36" digging bucket, and 48" clean up bucket/ Hydraulic Quick Attach Yanmar 4TNV98CT engine, (NO DPF) 14' 10.5" digging depth 16 343lbs bucket breakout force TECHNICAL SPECIFICATIONS Operating Weight 8800 kg 19,401 lb Ground Pressure 37.9 kPa 5.5 psi Engine Yanmar 4TNV98CT Displacement 3.3 L 202.5 in³ Gross Power 54.4 kW 73 hp Hydraulics Load Sensing with Pilot Controls Main Hydraulic Pump Axial Piston - Variable Displacement Operating Pressure (maximum) 26.3 MPa 3814 psi Primary Auxiliary Flow (maximum) 102.2 l/min 27 gal/min Travel Motor Axial Piston with Park Brake Travel Pressure (maximum) 26.3 MPa 3814 psi Travel Speeds (maximum) 2.6/4.5 kph 1.6/2.8 mph Travel Effort (maximum) 70 kN 15,736 lbf Grade Capability (maximum) 35° Swing Motor Axial Piston with Gear Reduction Swing Speed (maximum) 10.2 rpm Undercarriage (standard) Belted Rubber Track Track Width (standard) 450 mm 18" Track Rollers (per side) 5 Carrier Rollers (per side) 1 DIMENSIONS Boom Length 3499 mm 11' 6" Stick (Arm) Length 2051 mm 6' 9" A Transport Length 7010 mm 23' B Transport Width 2200 mm 7' 3" C Transport Height 2550 mm 8' 5" D Upper Structure Width 2200 mm 7' 3" E Blade Height 410 mm 16" F Track Width 450 mm 18" G Track Gauge 1750 mm 5' 9" H Ground Clearance 365 mm 14" I Tail-Swing Radius 1480 mm 4' 10" J Track Length on Ground 2315 mm 7' 7" K Track Length 2915 mm 9' 7" TECHNICAL SPECIFICATIONS Operating Weight 8800 kg 19,401 lb Ground Pressure 37.9 kPa 5.5 psi Engine Yanmar 4TNV98CT Displacement 3.3 L 202.5 in³ Gross Power 54.4 kW 73 hp Hydraulics Load Sensing with Pilot Controls Main Hydraulic Pump Axial Piston - Variable Displacement Operating Pressure (maximum) 26.3 MPa 3814 psi Primary Auxiliary Flow (maximum) 102.2 l/min 27 gal/min Travel Motor Axial Piston with Park Brake Travel Pressure (maximum) 26.3 MPa 3814 psi Travel Speeds (maximum) 2.6/4.5 kph 1.6/2.8 mph Travel Effort (maximum) 70 kN 15,736 lbf Grade Capability (maximum) 35° Swing Motor Axial Piston with Gear Reduction Swing Speed (maximum) 10.2 rpm Undercarriage (standard) Belted Rubber Track Track Width (standard) 450 mm 18" Track Rollers (per side) 5 Carrier Rollers (per side) 1 SERVICE REFILL CAPACITIES Fuel Tank Capacity 99.9 L 26.4 gal Hydraulic Tank Capacity 119.9 L 31.7 gal Engine Oil Capacity 10.2 L 2.7 gal Cooling System Capacity 11.7 L 3.1 g WORKING RANGE Boom Length 3499 mm 11' 6" Arm Length 2051 mm 6' 9" L Maximum Digging Height 7315 24' M Maximum Dumping Height 5436 17' 10" N Maximum Digging Depth 4534 14' 10.5" O Maximum Vertical Wall Digging Depth 2490 8' 2" P Maximum Reach at Ground Level 7290 23' 11" DIGGING PERFORMANCE Boom Length 3499 mm 11' 6" Arm Length 2051 mm 6' 9" Bucket Breakout Force (ISO) 72.7 kN 16,343 lbf Arm Breakout Force (ISO) 40.5 kN 9,105 lb
